Pinarello Dogma F12 Disc Frameset

Listed sizes are in-stock and ship in 24 hours. Other frames are available. Contact us.

The Pinarello Dogma F12 is the symbol of competition, a name that evokes excellence, quality, perfection, beauty, Italian design. The most successful bicycle in history … end of discussions. Comes in Disk or Rim Brake options.

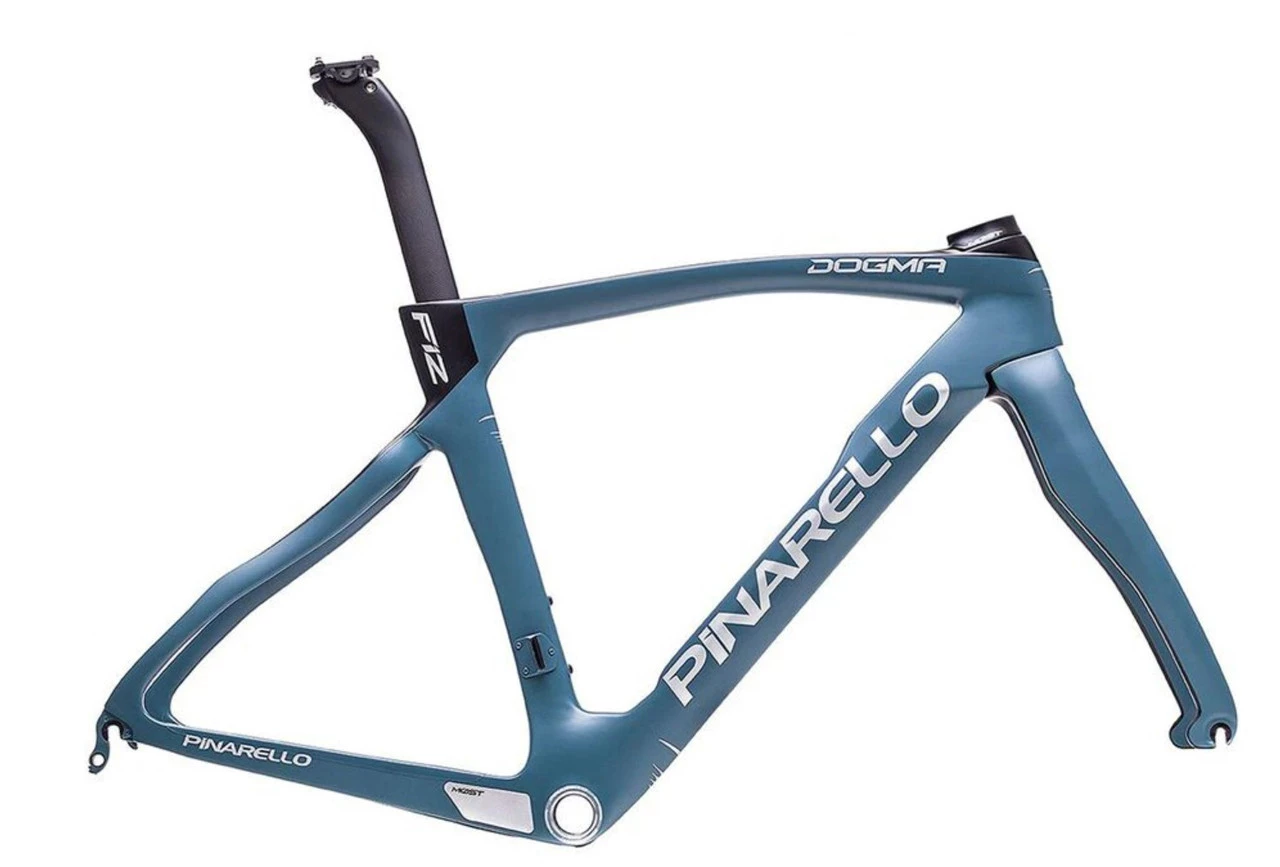

Dogma F12 Disk Frame
Carbon Torayca T1100 1K Dream Carbon with Nanoalloy Technology
Asymmetric Frame
TICR Total Internal Cable Routing
E-Link
Italian thread BB
Seatclamp TwinForce
3XAir two positions available for the second bottle
FlatBack Profile
UCI Approved
Drop in Bearing System 1”1/2 – 1”1/2
Dogma F12 Disc Brakes:

RAD System Disk Brake
Front Axle 100 x 12mm Shimano
Rear Axle 142 x 12mm Shimano
Disk Flat Mount max 160mm
Dogma F12 Disc Fork:

Fork ONDA with ForkFlap

Max Tyre 700 x 28mm

Features:

On the DISK version no cable is visible on the handlebar, on the RIM BRAKE version only one cable goes down to the front brake
Drag savings of 8 Watts at 40km/h, riding 1km equals a 1sec gain, that is victory
+10% LATERAL STIFFNESS = MORE POWER.
The Pinarello Dogma F12: EVEN MORE AERO, EVEN MORE POWERFUL, EVEN MORE BEAUTIFUL.

To be combined with Most Talon Ultra Handlebars: 8% more rigid than the previous Talon Aero, 5% less aerodynamic drag and lighter by 10%. (Sold Separately)
