Praxis Gen2 Cadet M30 Crank

Praxis Gen2 Cadet M30 Crank

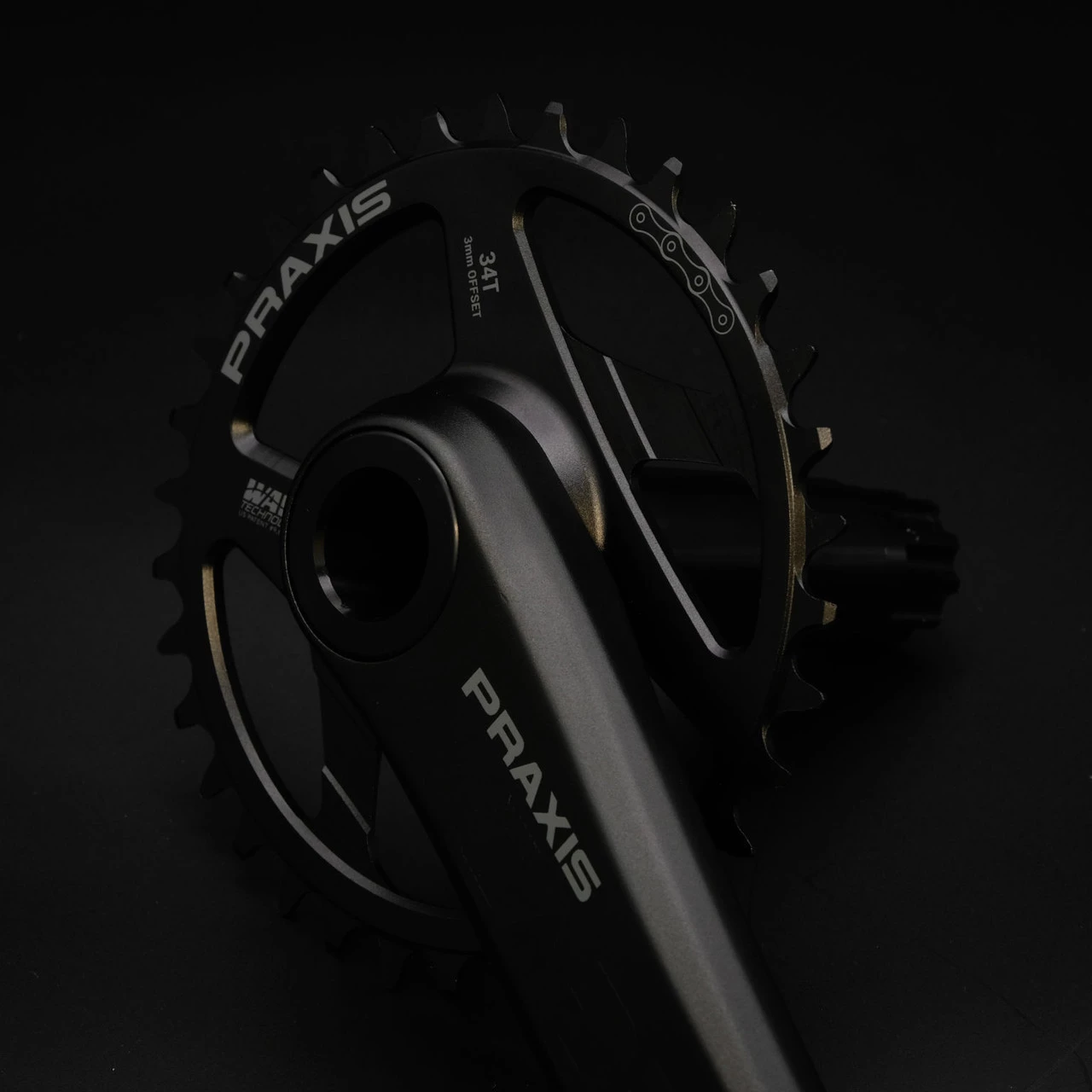

Updated arm shaping and spacing, the new Gen2 Cadet is perfect for all types of  trail riding.   This new generation Cadet packs in a level of performance aimed at value-driven riders that don’t want to mess around.  With stiff and solid forged-aluminum arms, a stout M30 alloy spindle and a direct mount ring interface, the new Cadet M30 checks all the boxes.   The CADET HD version is for those who need something Heavy Duty as we reinforced the arms to take more abuse.

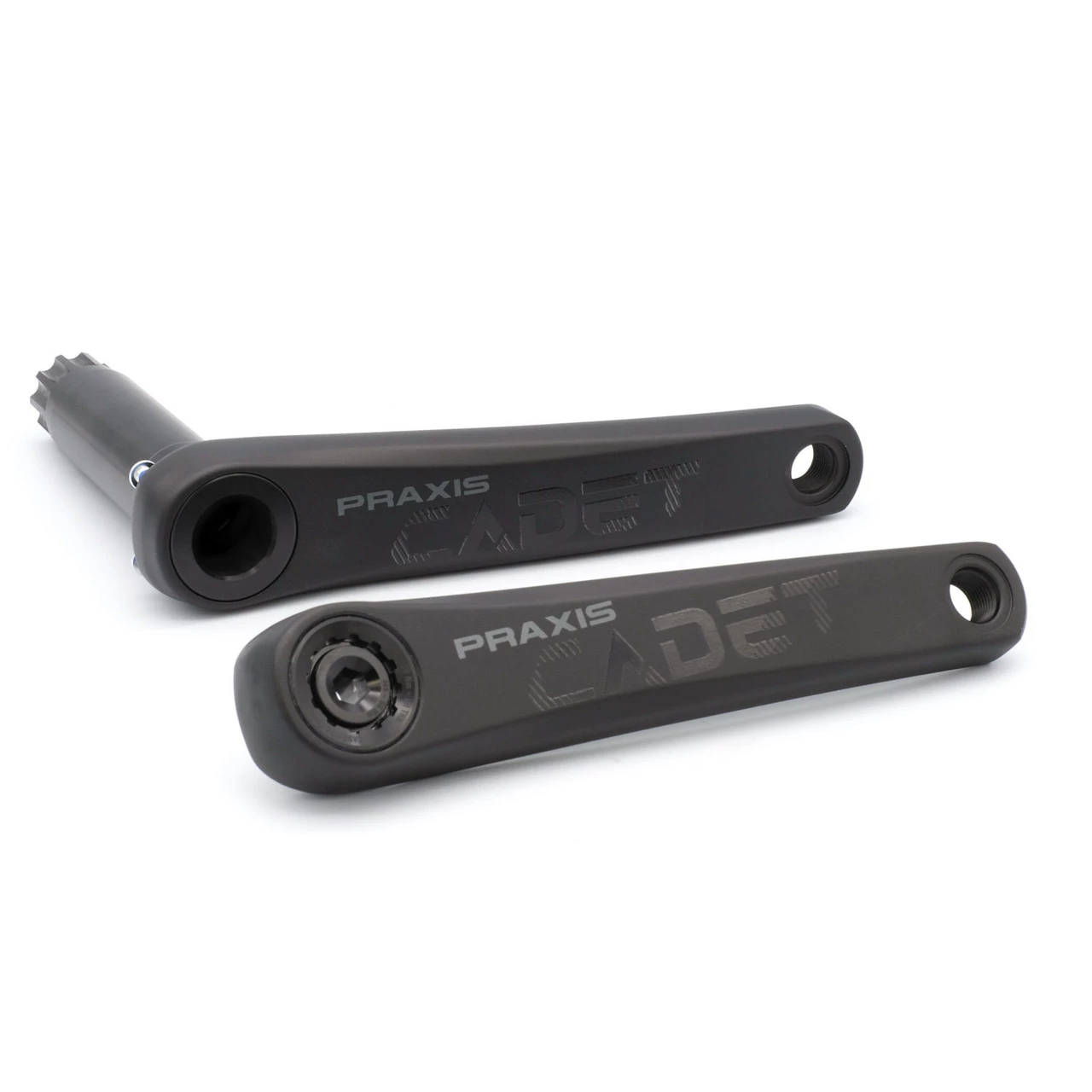

• Sold as crank arms only  |  M30 BB & DM Ring sold separately
• CADET –  165 / 170 / 175  | Q-Factor 177mm
• CADET HD –  165 / 170 |  Q-Factor 177mm
• HD “Heavy Duty” version with reinforced arm forging – See pic above
• Updated 3-bolt DM ring interface to align spacing with established chain-line offsets. See Pic

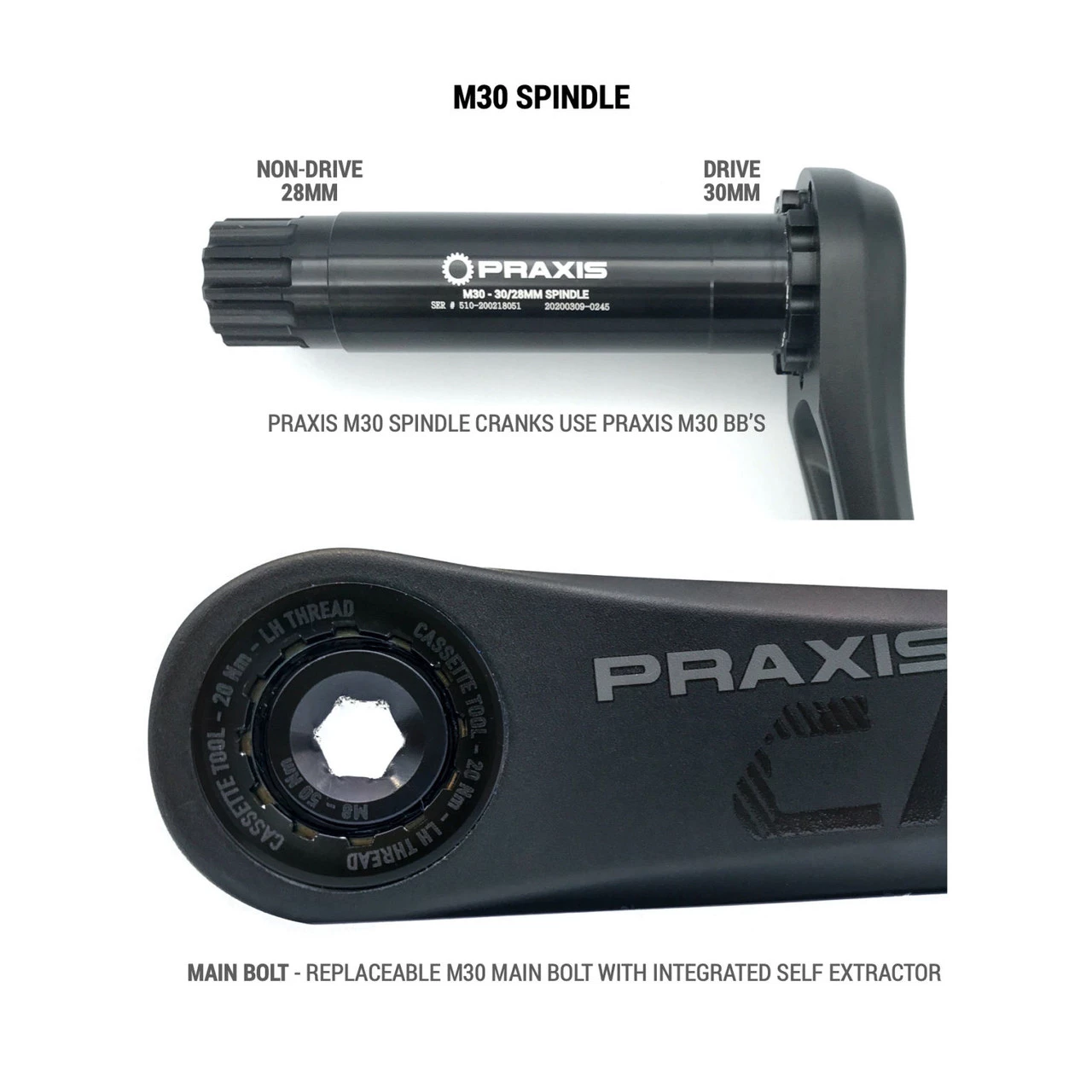

• 8mm alloy main crank bolt for Install/Self-Extract | 50Nm Torque
• M30 Spindle | Requires Praxis M30 BB
• Ref Weight:  558g +/-  (Cadet 170mm set – no ring)

BOTTOM BRACKET : Required Praxis M30 BB HERE

DIRECT MOUNG RINGS : Praxis Wave Tech Rings HERE

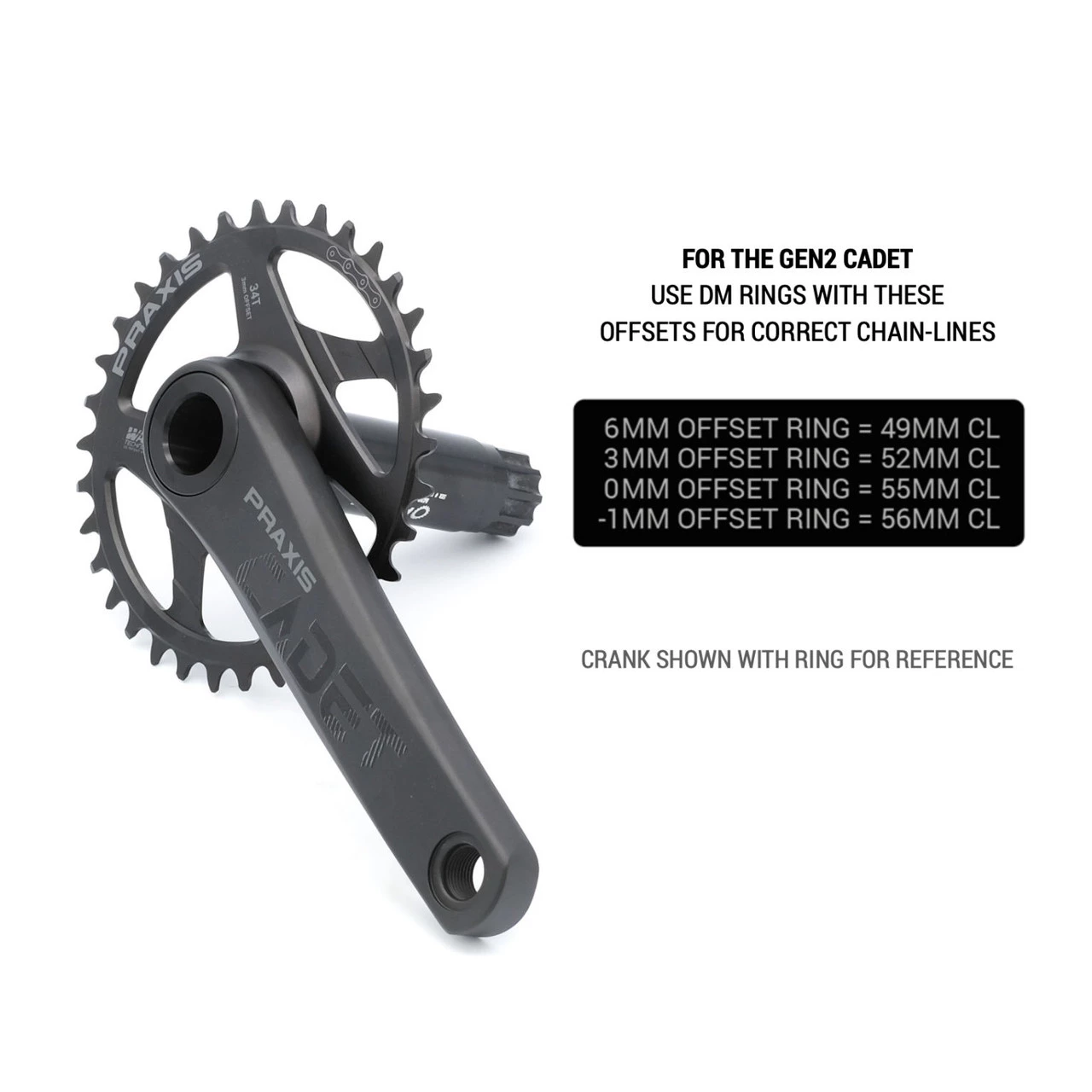

This new Cadet M30 is designed to use any 3-bolt direct mount ring that uses the established offsets for chain-lines.  Please see photo above for Chainline Guide
