Praxis M30-BB86/BB90/BB92/DH 104.5/DH 107

Praxis M30-BB86/BB90/BB92/DH 104.5/DH 107

This M30 BB is a press fit bearing with for 41mm frames :

• Road crank into BB86 ROAD.  (86.5mm W)
• MTB crank into BB90 (89.5mm W) or BB92 (92mm W)
• DH crank into 104.5mm W or 107mm W  DH frame
• BOX M30 BMX CRANK  – BB86 BMX frame (86.5mm W)

Specifications

• For Praxis M30 spindle cranks being installed on: BB86 ROAD/BMX | BB90/BB92 MTN |  DH 104.5   DH107

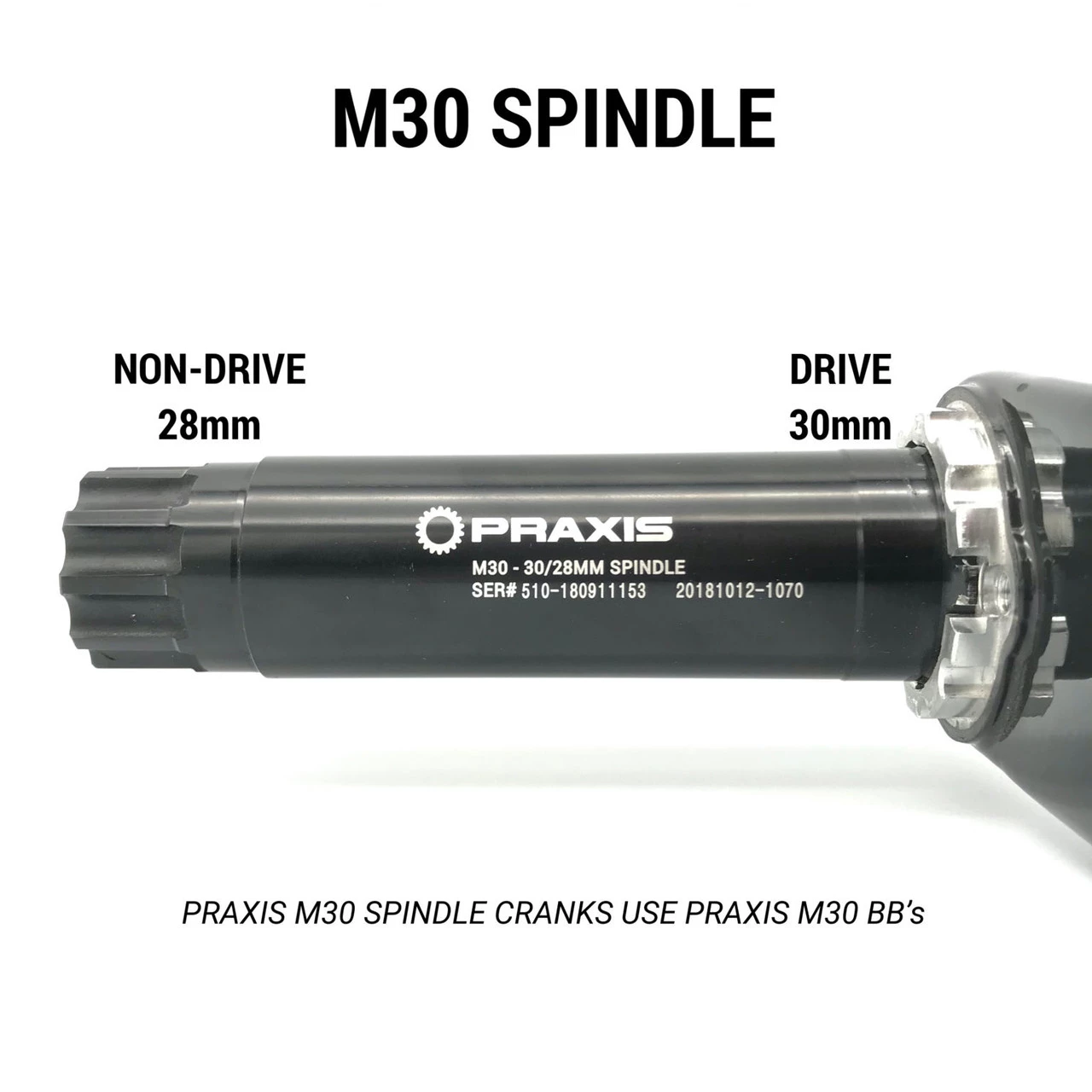

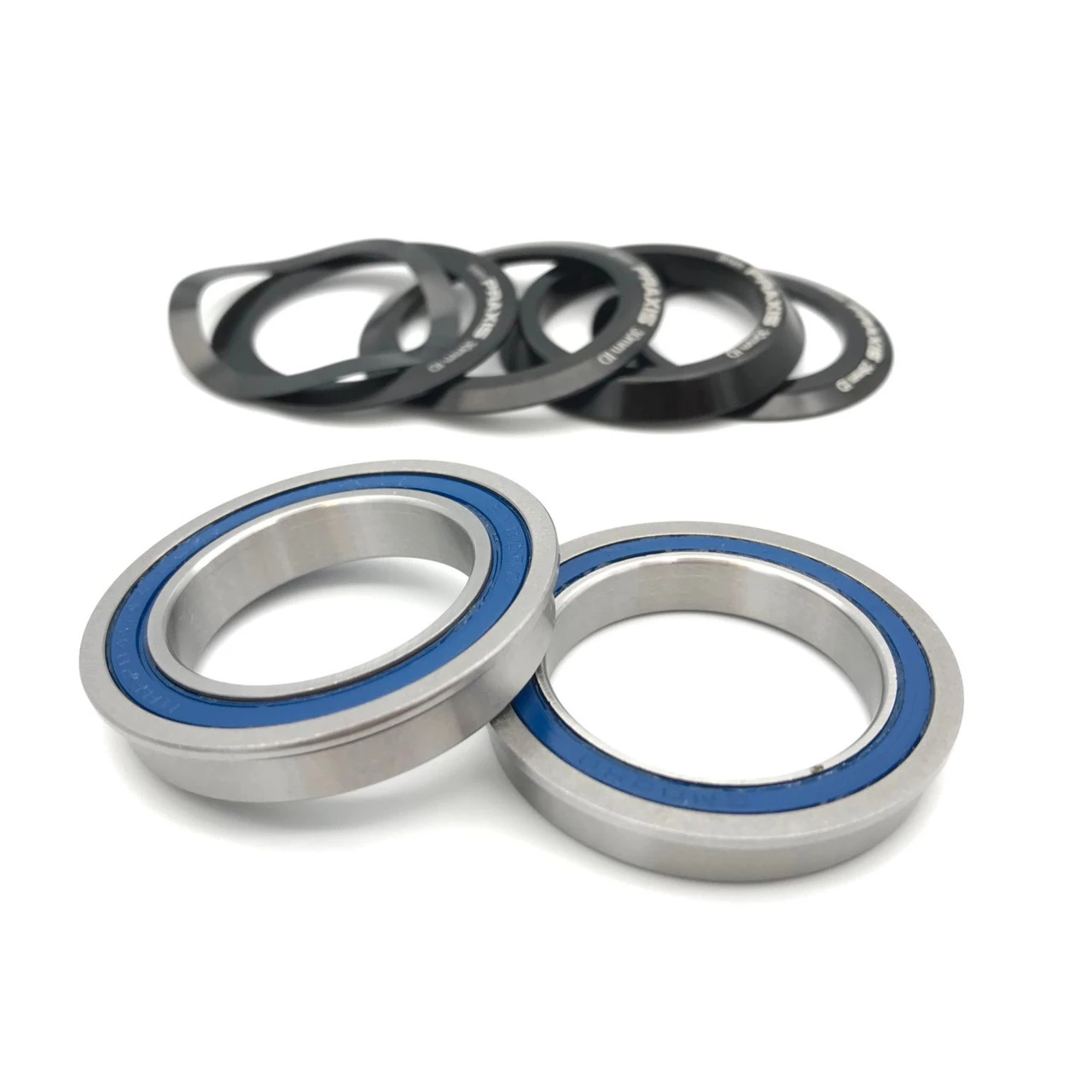

• 30mm Drive bearing / 28mm NonDrive bearing | Steel cartridge bearings

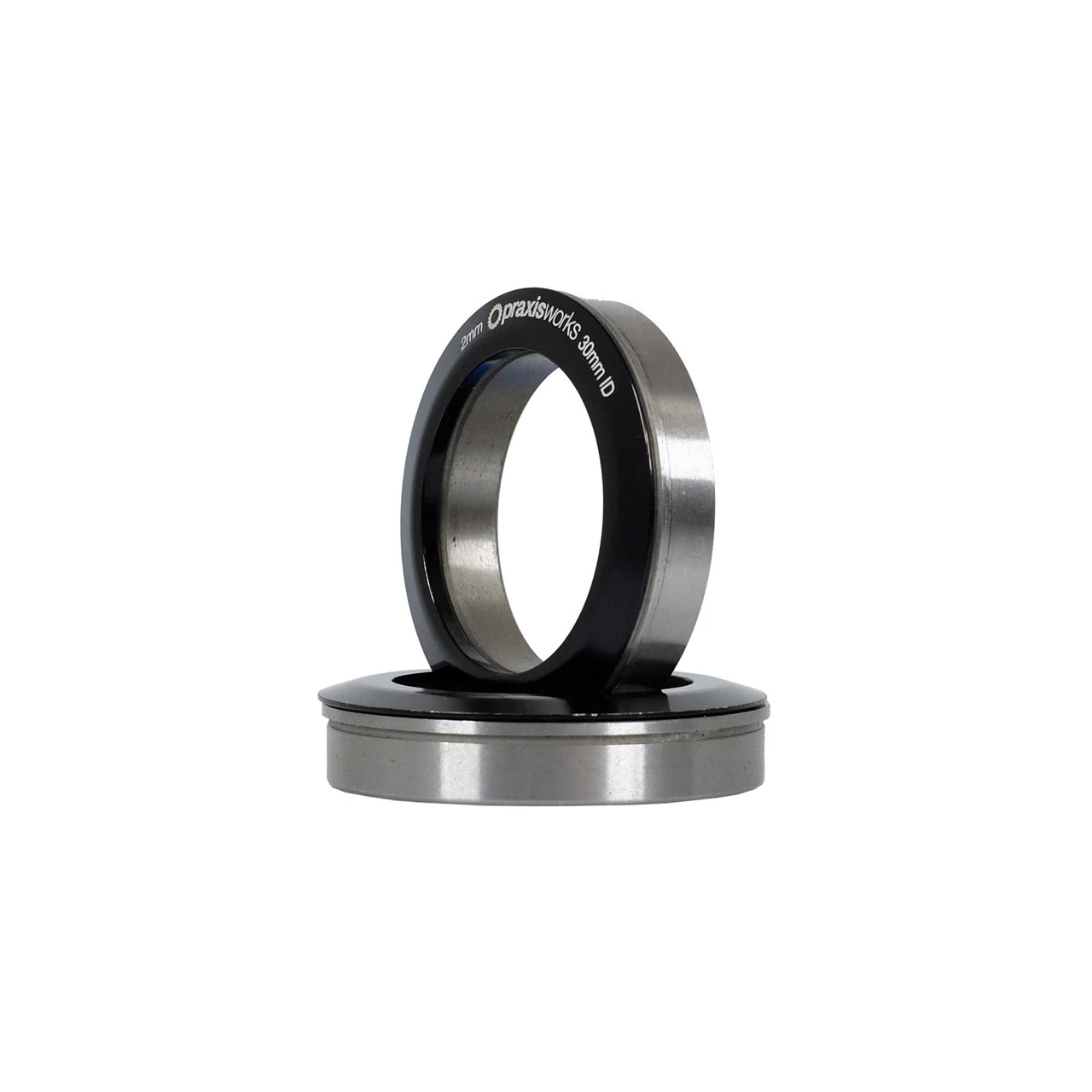

• Unique design in which the bearing outer race is also the outer press fit surface

Technology

• Unique all in one design in which the bearing outer race is also the outer press fit surface
• Chromium steel design

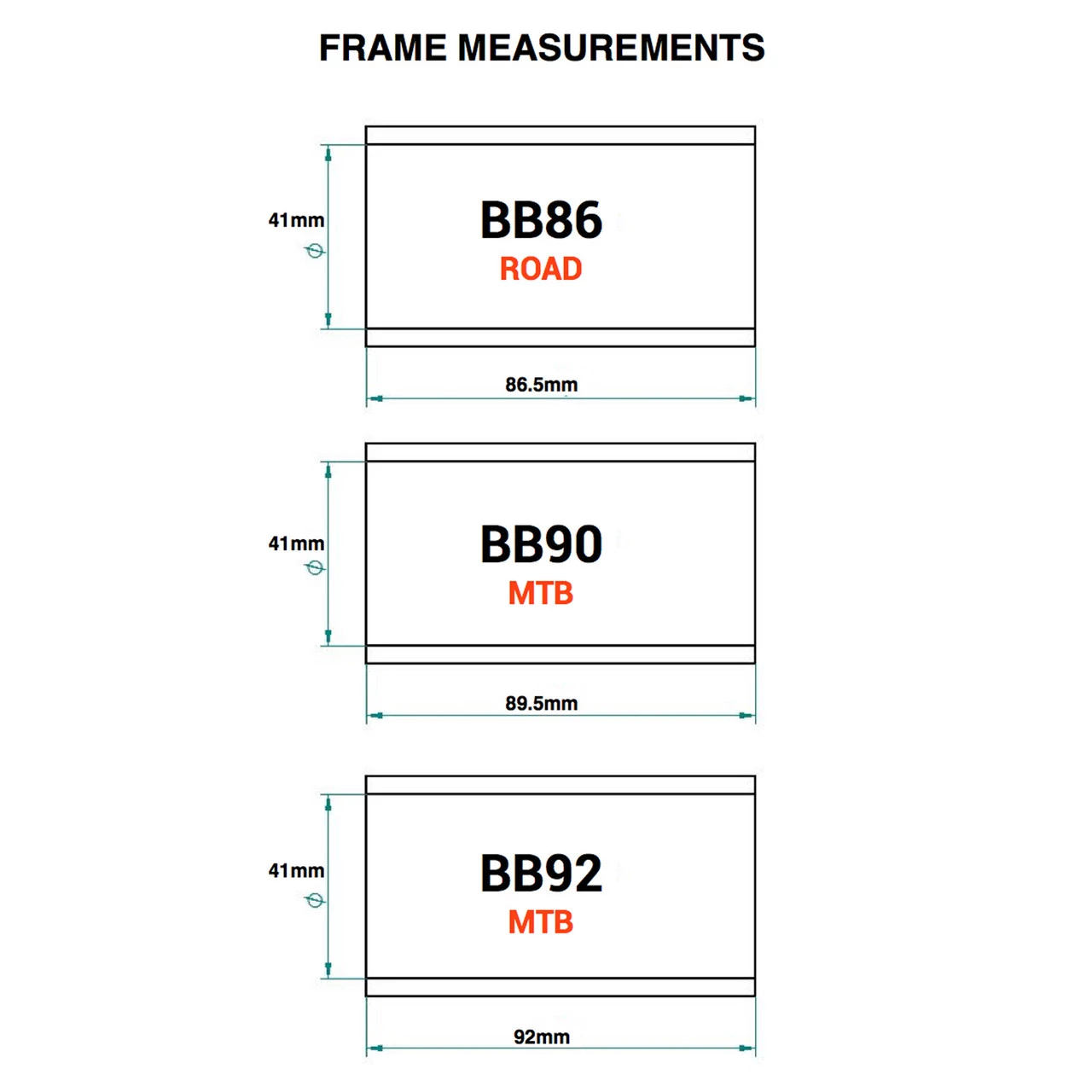

• BB86 Road/BMX = 86.5mm width X 41mm diameter
• BB90 MTB = 89.5mm width X 41mm diameter (*NOT Trek Road BB90!)
• BB92 MTB = 92mm width X 41mm diameter
