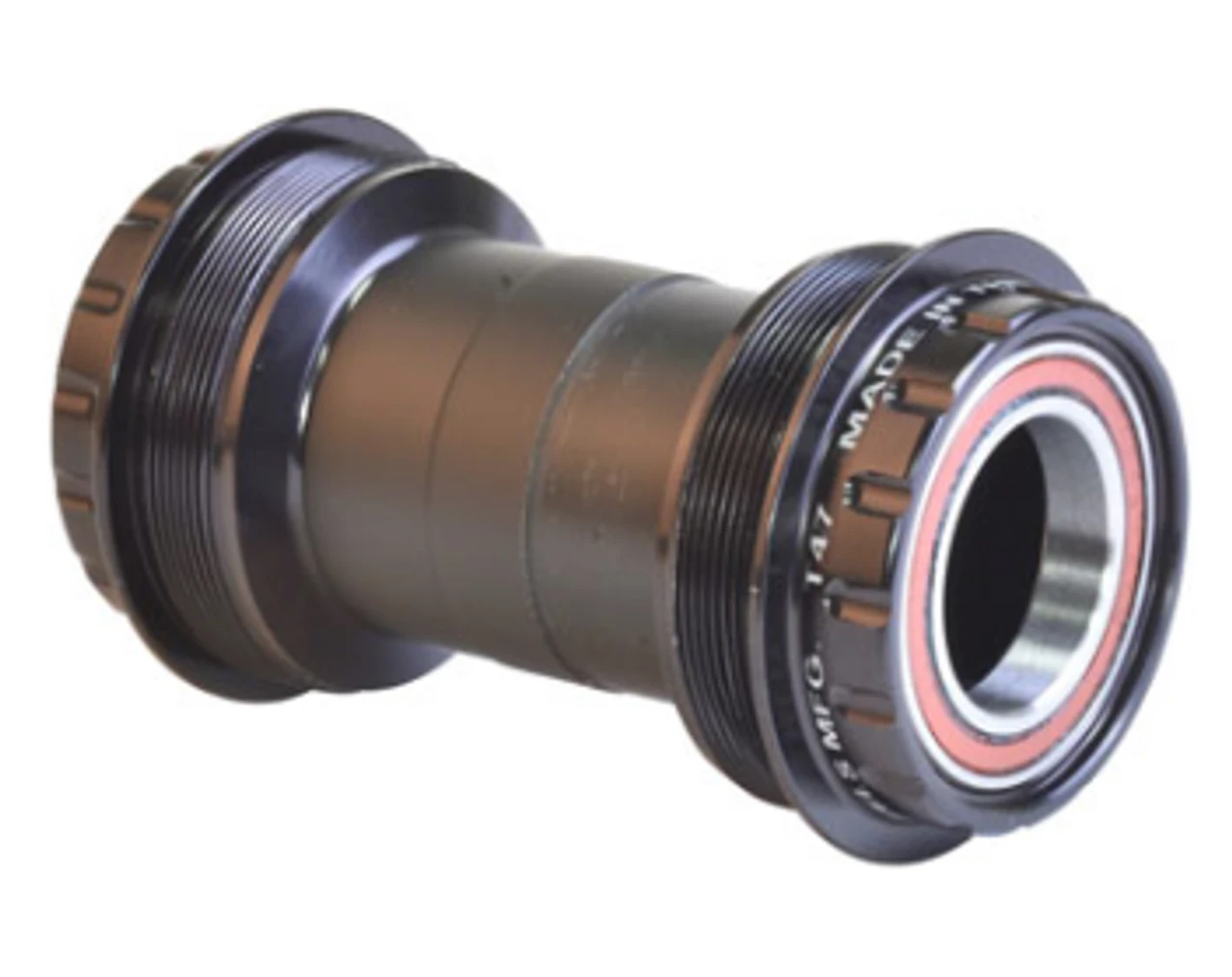

Wheels Manufacturing T47 Outboard Bottom Bracket

T47 Outboard threaded bottom brackets are made from machined aluminum, and thread together directly into T47 frames. Cups have internal bearings for use in BB shell widths from 68mm to 100mm.

• Enduro Angular Contact bearings – easily serviced or replaced
• Similar to standard BSA threaded cups; the drive side cup is left-hand thread and the non-drive side cup is right-hand thread
• Compatible with 24mm spindle diameter cranksets, like Shimano HollowTech II

Specifications:

• BB Shell Width (mm): 68 mm , 73 mm , 83 mm , 100 mm
• BB/Frame Interface: T47
• Bottom Bracket Shell I.D.: 47
• Defined Color: Black
• Weight: 150 g
• Spindle Interface Type: Shimano Hollowtech II , FSA MegaExo , FSA MegaExo Light , RaceFace EXI
